Input - Output Moduls

Finder Modul

INTELLIGENT ADDRESS INPUT / OUTPUT MODULES


The Finder module array is the interface for controlling the intelligent addressable family, monitoring or auxiliary devices. Finder module series is self-isolating. It enables fast and safe transmission of information. Intelligent addressable elements that provide digital communication protocol with Control Panel are products that guarantee high rates of information, fast and safe responses. Finder modules are used together with compatible control panels for monitoring and control. The installation of our modules conforms to national or international installation / application standards.

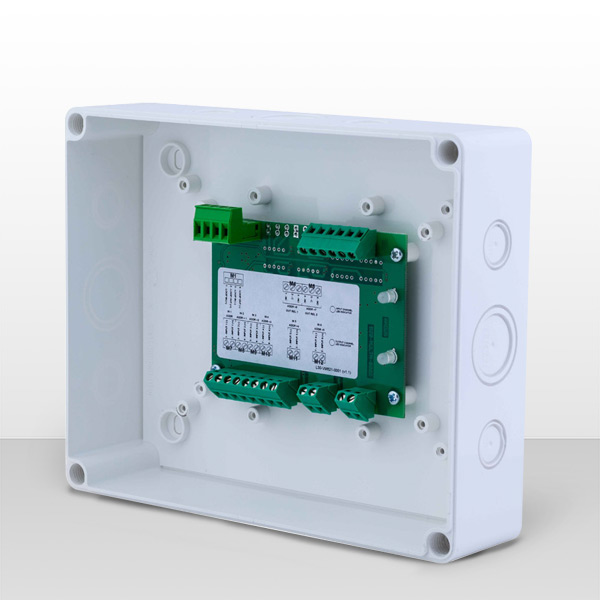

FF MIC4/22

INTELLIGENT ADDRESSED INPUT / OUTPUT MODULE

    FEATURES

  • Provides high reliability and fault finding
  • Self-short-circuit isolator
  • 4 input, 2 relay output, 2 output contacts
  • Full digital protocol
  • Automatic addressed (Control Panel supported)
  • Line Monitoring (27Kohm)
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 500μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 65
Standarts EN 54-18 - EN 54-17

FF MIC4/4

INTELLIGENT ADDRESSED INPUT / OUTPUT MODULE

    FEATURES

  • Provides high reliability and fault finding
  • Self-short-circuit isolator
  • 4 input, 4 output contacts
  • Full digital protocol
  • Auto-addressable (Control Panelsupported)
  • Line Monitoring (27Kohm)
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 500μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 65
Standarts EN 54-18 - EN 54-17

FF MIC6/2

INTELLIGENT ADDRESSED INPUT / OUTPUT MODULE

    FEATURES

  • Provides high reliability and fault finding
  • Self-short-circuit isolator
  • 6 input, 2 output contacts
  • Full digital protocol
  • Auto-addressable (Control Panelsupported)
  • Line Monitoring (27Kohm)
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 500μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 65
Standarts EN 54-18 - EN 54-17

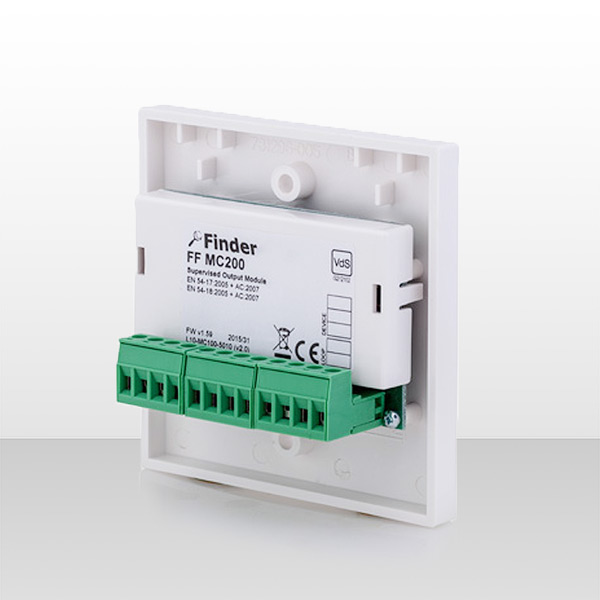

FF MC200

INTELLIGENT RELAY MODULE

    FEATURES

  • Provides high reliability and fault monitoring
  • Short circuit isolator
  • 1 C output contact
  • Full digital protocol
  • Automatic addresses
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 500μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 65
Standarts EN 54-18 - EN 54-17

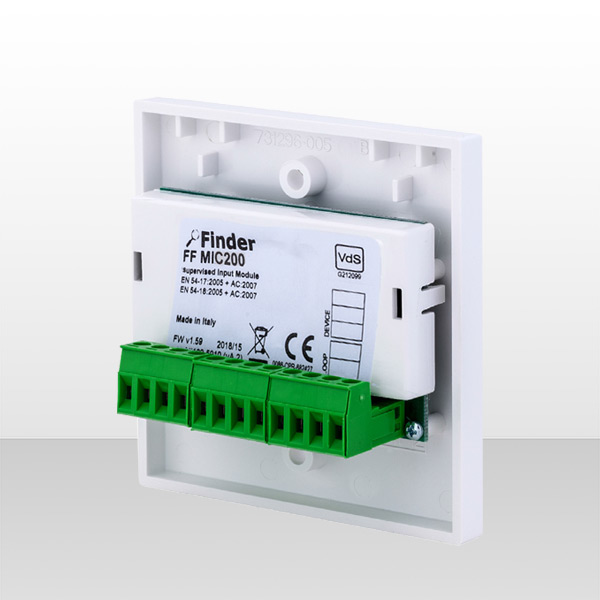

FF MIC200

INTELLIGENT ADDRESSED INPUT/OUTPUT MODULE

    FEATURES

  • Provides high reliability and fault monitoring
  • Designed in accordance with EN-18
  • Self-short-circuit isolator
  • 6 input, 2 output contact
  • Full digital protocol
  • Auto-addressable (Control Panel-supported)
  • Line monitoring (27 Kohm)
  • R&D Password-protected
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 40
Standarts EN 54-18 - EN 54-17

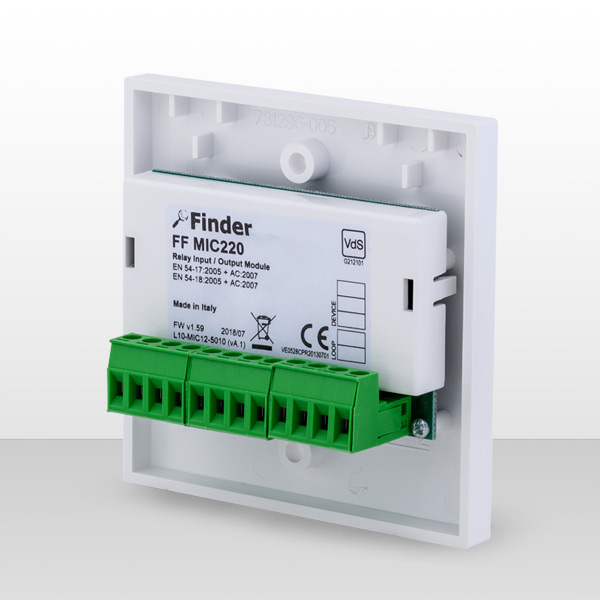

FF MIC220

INTELLIGENT ADDRESSED INPUT / OUTPUT MODULE

    FEATURES

  • High reliability
  • Short circuit isolator
  • With 1 output contact
  • Full digital protocol
  • Automatic addressable (control panel supported)
  • Dual color LED
  • Loop-fed

TECHNICAL SPECIFICATIONS

Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC

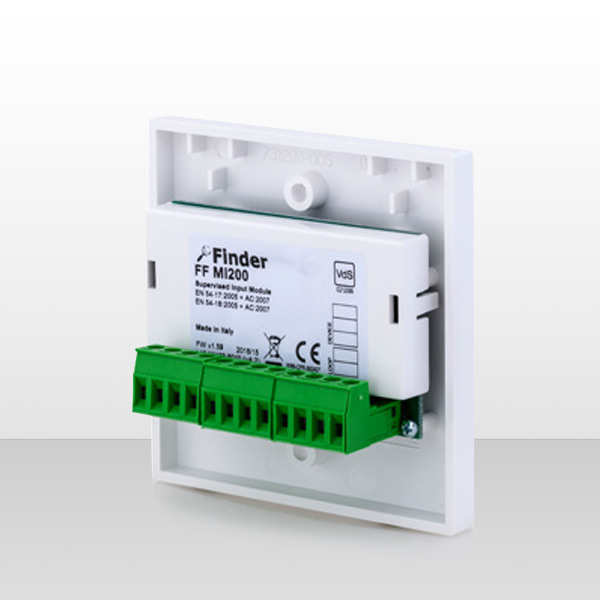

FF MI200

INTELLIGENT ADDRESSED OUTPUT MODULE

    FEATURES

  • Provides high reliability and fault finding
  • Self-short-circuit isolator
  • 1 output contact
  • Full digital protocol
  • Auto-addressable (Control Panel-supported)
  • Line monitoring (27 Kohm)
  • Digital double address control

TEKNİK ÖZELLİKLERİ

Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protect Class IP 40

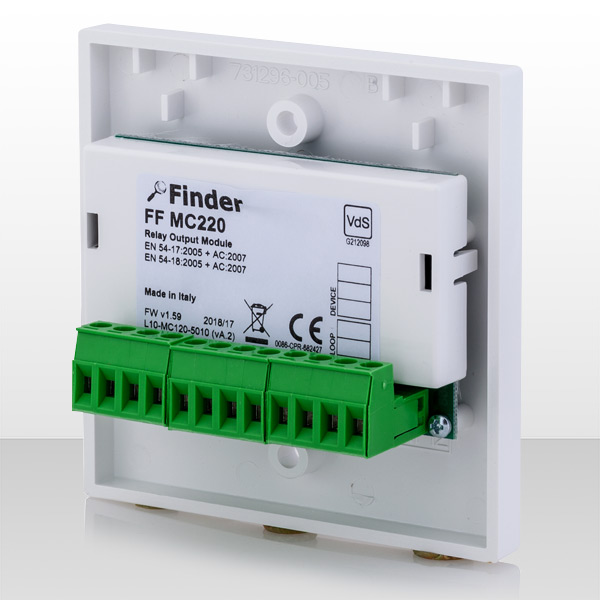

FF MC220

INTELLIGENT RELAY MODULE

    FEATURES

  • Provides high reliability and fault monitoring
  • Short circuit isolator
  • 1 C output contact
  • Full digital protocol
  • Automatic addresses
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 65
Standarts EN 54-18 - EN 54-17

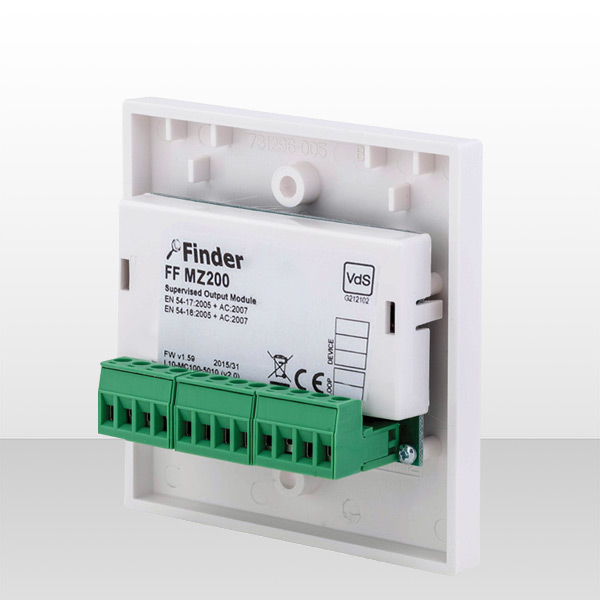

FF MZ200

INTELLIGENT ADDRESSED ZONE MODULE

    FEATURES

  • Provides high reliability and fault finding
  • Self-short-circuit isolator
  • 1 zone output contact
  • Full digital protocol
  • Auto-addressable (Control Panel-supported)
  • Line Monitoring (27Kohm)
  • Digital double address control

TECHNICAL SPECIFICATIONS

Current (Standby) 500μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
Protection Class IP 40
Standarts EN 54-18 - EN 54-17

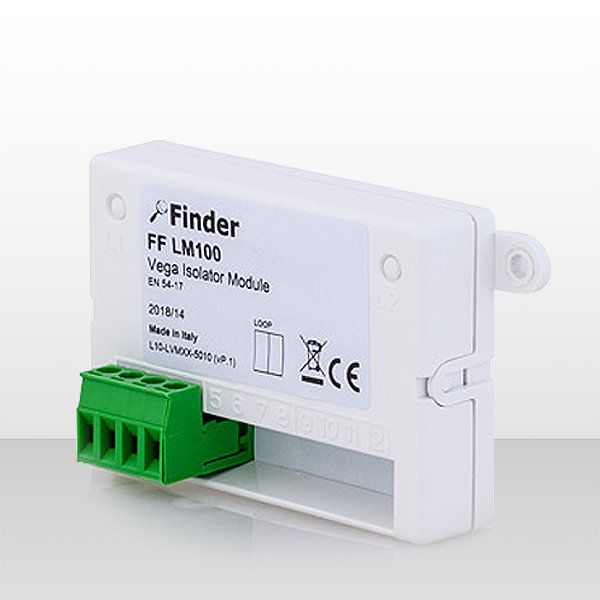

FF LM100

INTELLIGENT ISOLATOR MODULE

    FEATURES

  • High reliability and low error margins
  • Short circuit self isolator
  • Full digital protocol
  • Auto addressable (Control Panel supported)
  • Line limit (27Kohm)
  • Digitally double check of the addresses

TECHNICAL SPECIFICATIONS

Current (Standby) 120μA
Current (LED@24v) 6mA
Operating Voltage 15-40v DC
Switching Relay 2A @ 30v DC
Humidity %95RH
Operating Temp. -30ºC~+70ºC
Storage Temp. -40ºC~+70ºC
